Previous The Keyer/PSU Unit for  GB3CMS, May 1997 Next

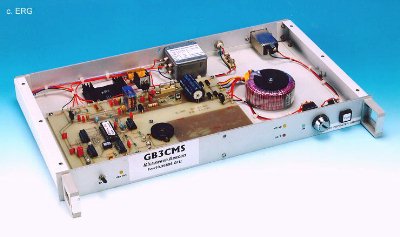

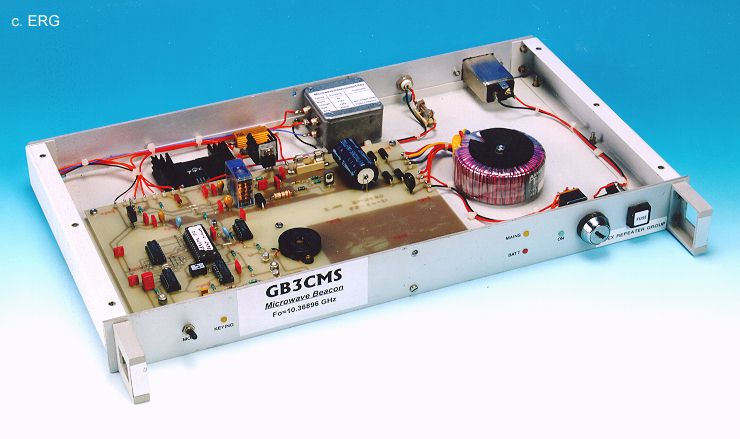

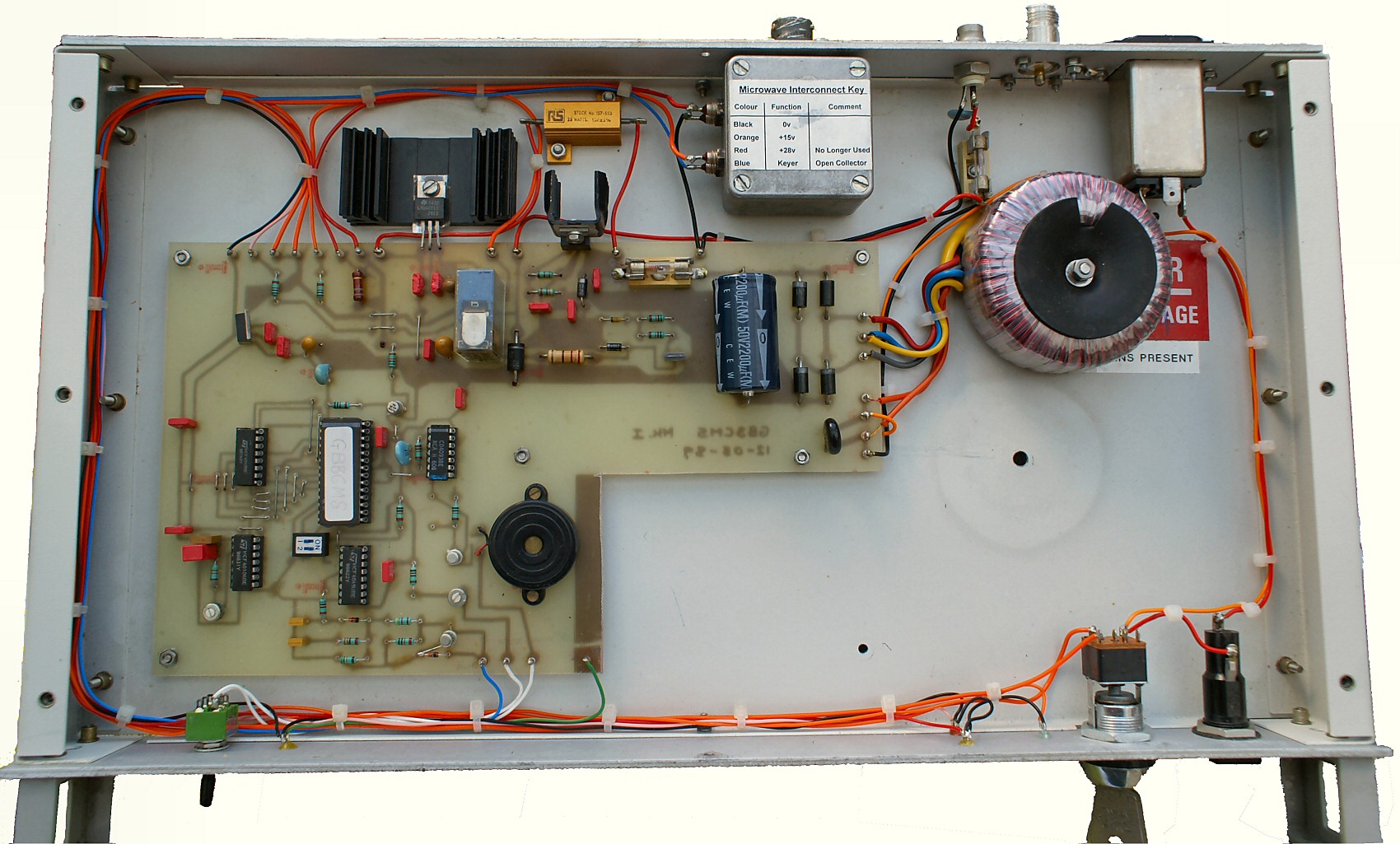

The Keyer and PSU unit for GB3CMS is housed in this 1U high 19" case. The keyer sequence is held in a 27C64 (or 27C128) Eprom. Circuit mods, new programming software and Eproms, and new documentation were made prior to its return to service in July 1997.

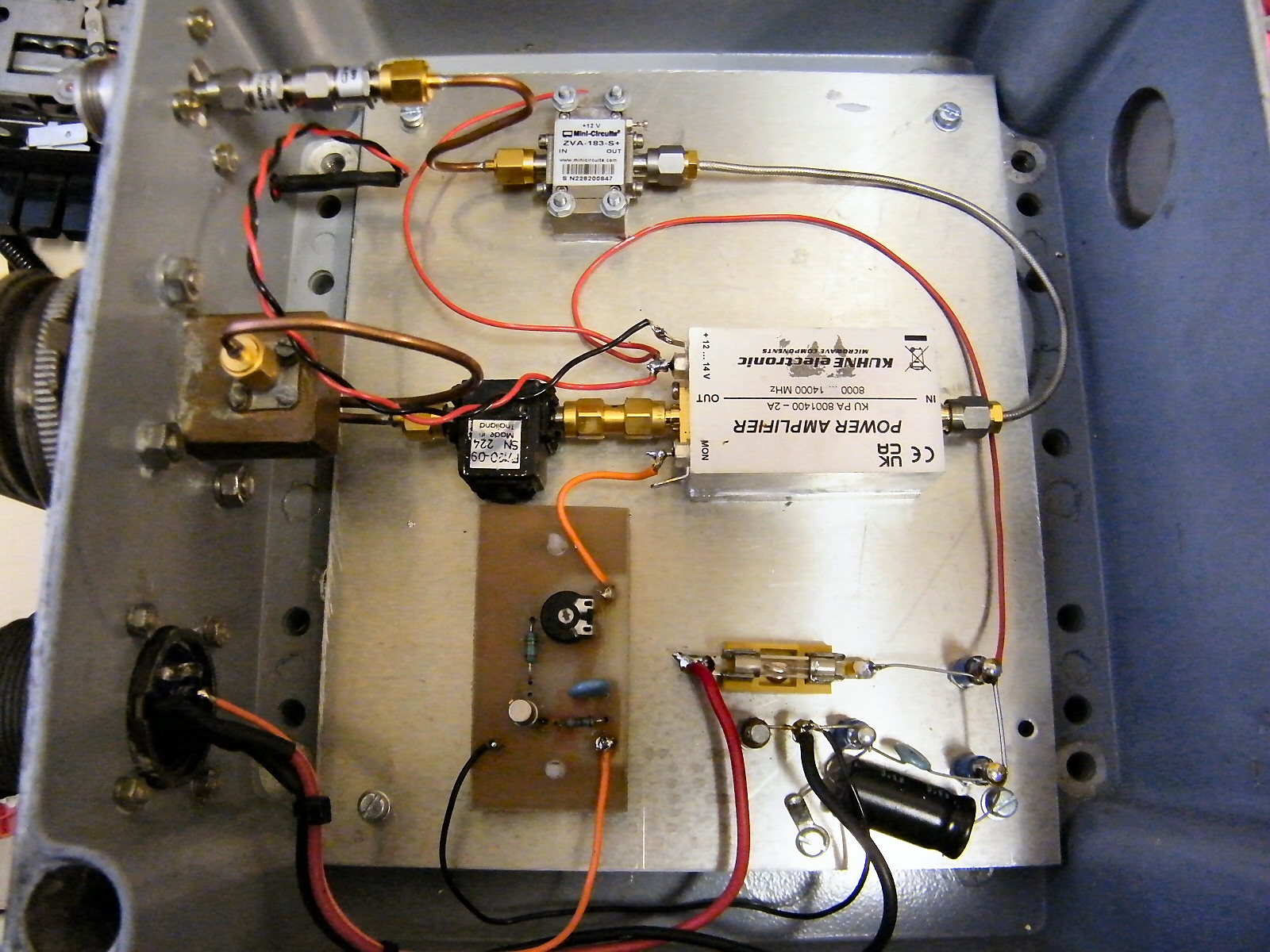

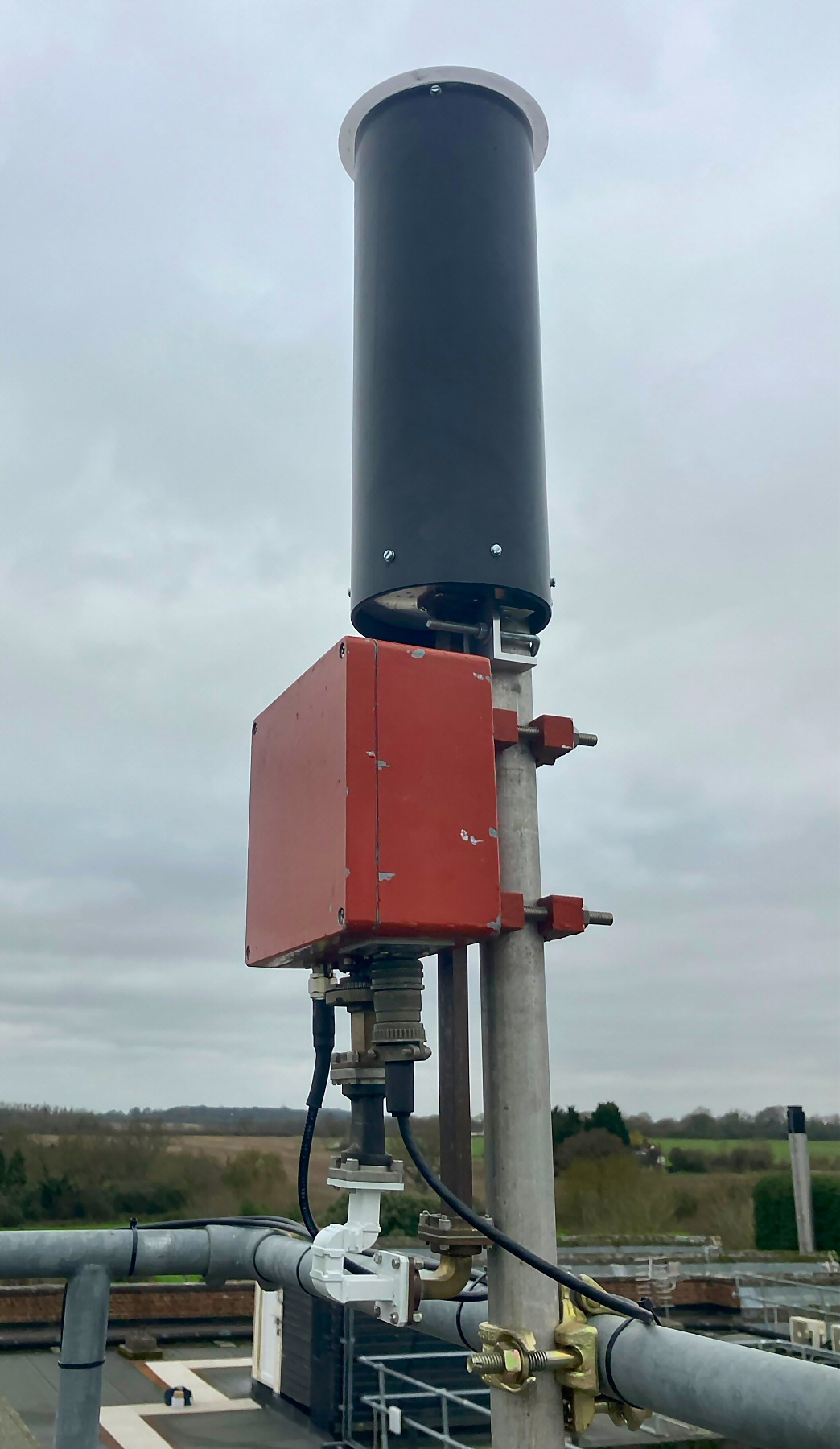

The microwave section is in a separate masthead unit which is powered via an umbilical cable from the keyer.

  • 2008: Prep for GB3CMS Mk3
